MOTOR BASE MS SERIES

transmission parts, ms series

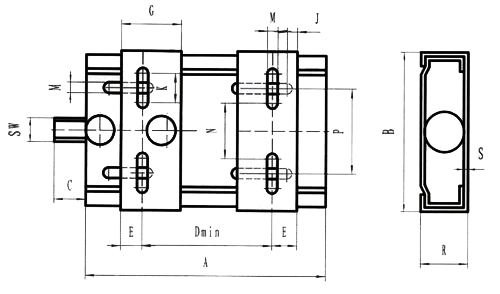

MS TYPE MOTOR BASES DIMENSIONS

UNIT: mm

NO.	TYPE	MOTOR	A	B	C	Dmin	E	G	J	K	M	N	P	R	SW	S	(N)	KG
1	210	63-71-80-90	210	195	20	100	20	70	25	50	10.5	43	90	31	19	3	580	2.4
2	270	90-100-112	270	195	20	100	20	70	25	50	10.5	43	90	31	19	3	940	2.8
3	340	100-112-132	340	290	30	136	27	95	29	63	12.5	90	165	37	22	4	1380	6.1
4	430	112-132-160	430	290	30	136	27	95	29	63	12.5	90	165	37	22	4	2000	8.1
5	490	160-180-200	490	409	30	110	40	95	30	60	15	193	142	37	22	4	2630	12.2
