POWER LOCKS BH

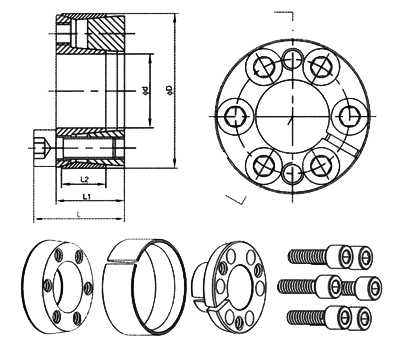

POWER LOCKS - BH

Type BH Spc.	Fundamental dimensions			SizesXN	Rated load		Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
Type BH Spc.	L	L1	L2	SizesXN	Mt(Kn.m)	Ft(Kn)	Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
16X32	21.5	17.5	11	M4X4	0.08	9.00	150	75	5	0.07
18X40	24.5	18.5	12	M6X5	0.21	23.00	260	115	17	0.12
19X41	24.5	18.5	12	M6X5	0.22	23.00	255	115	17	0.12
20X42	24.5	18.5	12	M6X6	0.24	25.50	280	130	17	0.13
22X44	24.5	18.5	12	M6X6	0.26	25.50	260	130	17	0.14
24X46	24.5	18.5	12	M6X6	0.31	25.50	230	120	17	0.15
25X47	24.5	18.5	12	M6X6	0.33	25.50	230	120	17	0.16
28X50	24.5	18.5	12	M6X8	0.49	35.00	270	150	17	0.17
30X52	24.5	18.5	12	M6X8	0.53	35.00	250	140	17	0.18
32X54	24.5	18.5	12	M6X8	0.56	35.00	230	130	17	0.19
35X57	28	22	15	M6X9	0.68	38.00	200	120	17	0.25
36X58	28	22	15	M6X9	0.71	38.00	190	115	17	0.25
38X60	28	22	15	M6X10	0.83	43.50	200	125	17	0.26
40X62	28	22	15	M6X10	0.87	43.50	190	120	17	0.27
42X70	36	28	18	M8X8	1.36	64.00	225	135	41	0.51
45X73	36	28	18	M8X8	1.45	64.00	210	130	41	0.52
48X76	36	28	18	M8X8	1.55	64.00	195	125	41	0.55
50X78	36	28	18	M8X8	1.61	64.00	190	120	41	0.57
55X83	36	28	18	M8X9	2.01	72.50	195	130	41	0.63
56X84	36	28	18	M8X9	2.03	72.50	190	125	41	0.63
60X88	36	28	18	M8X10	2.42	80.50	195	135	41	0.65
63X91	36	28	18	M8X10	2.54	80.50	190	130	41	0.68
65X93	36	28	18	M8X10	2.62	80.50	180	125	41	0.69
70X105	45	35	22	M10X9	4.02	114.00	200	130	83	1.20
75X110	45	35	22	M10X10	4.81	128.00	205	125	83	1.26
80X115	45	35	22	M10X10	5.12	128.00	190	130	83	1.35
85X120	45	35	22	M10X10	5.45	128.00	180	125	83	1.40
90X125	45	35	22	M10X12	6.91	153.00	205	155	83	1.46
100X138	45	35	22	M10X12	8.26	168.00	159	115	83	1.75
