Power Locks B

POWER LOCKS B

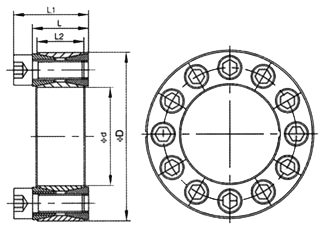

Type B Spc.	Fundamental dimensions			SizesXN	Rated load		Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
Type B Spc.	L2	L	L1	SizesXN	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
19X47	17	20	26	M6X8	27	0.24	213	90	14	0.25
20X47	17	20	26	M6X8	27	0.27	210	90	14	0.24
22X47	17	20	26	M6X8	27	0.30	195	90	14	0.23
25X50	17	20	26	M6X9	30	0.38	190	95	14	0.25
28X55	17	20	26	M6X10	33	0.47	185	95	14	0.30
30X55	17	20	26	M6X10	33	0.50	175	95	14	0.29
35X60	17	20	26	M6X12	40	0.70	180	105	14	0.32
38X63	17	20	26	M6X14	46	0.88	185	105	14	0.33
40X65	17	20	26	M6X14	46	0.92	180	110	14	0.34
42X72	20	24	32	M8X12	65	1.36	200	117	35	0.48
45X75	20	24	32	M8X12	72	1.62	210	125	38	0.57
50X80	20	24	32	M8X12	71	1.77	190	115	38	0.60
55X85	20	24	32	M8X14	83	2.27	200	130	38	0.63
60X90	20	24	32	M8X14	83	2.47	180	120	38	0.69
65X95	20	24	32	M8X16	93	3.04	190	130	38	0.73
70X100	24	28	38	M10X14	132	4.60	210	130	70	1.26
75X115	24	28	38	M10X14	131	4.90	195	125	70	1.33
80X120	24	28	38	M10X14	131	5.20	180	120	70	1.40
85X125	24	28	38	M10X16	148	6.30	195	130	70	1.49
90X130	24	28	38	M10X16	147	6.60	180	125	70	1.53
95x135	24	28	38	M10X18	167	7.90	195	135	70	1.62
100X145	29	33	45	M12X14	192	9.60	195	135	125	2.01
105X150	29	33	45	M12X14	190	9.98	185	130	125	2.10
110X155	29	33	45	M12X14	191	10.50	180	125	125	2.15
120X165	29	33	45	M12X14	218	13.10	185	135	125	2.35
125X170	29	33	45	M12X18	220	13.78	180	130	125	2.95
130X180	34	38	50	M12X20	272	17.60	165	120	125	3.51
140X190	34	38	50	M12X22	298	20.90	165	125	125	3.85
150X200	34	38	50	M12X24	324	24.20	170	125	125	4.07
160X210	34	38	50	M12X26	350	28.00	170	130	125	4.30
170X225	38	44	58	M14X22	386	32.80	160	120	190	5.78
180X235	38	44	58	M14X24	420	37.80	165	125	190	6.05
190X250	46	52	66	M14X28	490	46.50	150	115	190	8.25
200X260	46	52	66	M14X30	525	52.50	150	115	190	8.65
210X275	50	56	72	M16X24	599	62.89	151	115	295	10.10
220X285	50	56	72	m16x26	620	68.00	150	115	295	11.22
240X305	50	56	72	M16X30	715	85.50	160	125	295	12.20
250X315	50	56	72	M16X32	768	96.00	162	125	295	12.70
260X325	50	56	72	M16X34	800	104.00	165	130	295	13.20
280X355	60	66	84	M18X32	915	128.00	145	115	405	19.20
300X375	60	66	84	M18X36	1020	153.00	150	120	405	20.50
320X405	72	78	98	M20X36	1310	210.00	150	120	580	29.60
340X425	72	78	98	M20X36	1310	224.00	145	115	580	31.10
360X455	84	90	112	M22X36	1630	294.00	145	115	780	42.00
380X475	84	90	112	M22X36	1630	308.00	135	110	780	44.00
400X495	84	90	112	M22X36	1610	322.00	130	105	780	46.00
420X515	84	90	112	M22X40	1780	374.00	135	110	780	50.00
450X555	96	102	126	M24X40	2050	461.25	124	100	1000	65.00
480X585	96	102	126	M24X42	2160	518.40	124	100	1000	71.00
500X605	96	102	126	M24X44	2240	560.00	123	100	1000	72.60
530X640	96	102	126	M24X45	2330	617.00	121	110	1000	83.60
560X670	96	102	126	M24X48	2440	680.00	120	110	1000	85.00
600X710	96	102	126	M24X50	2580	775.00	118	100	1000	91.00
630X740	96	102	126	M24X52	2680	844.00	117	105	1000	94.00
670X780	96	102	126	M24X56	2820	944.00	116	100	1000	101.00
710X820	96	102	126	M24X60	2970	1054.00	115	100	1000	106.00
750X860	96	102	126	M24X62	3130	1173.00	115	100	1000	112.00
800X910	96	102	126	M24X66	3260	1300.00	112	100	1000	118.00
850X960	96	102	126	M24X70	3500	1487.00	113	100	1000	125.00
900X1010	96	102	126	M24X75	3680	1650.00	112	100	1000	132.00
950X1060	96	102	126	M24X80	3870	1838.00	112	100	1000	139.00
1000X1110	96	102	126	M24X82	4000	2000.00	110	100	1000	146.00
