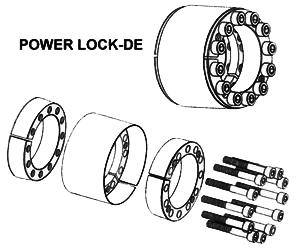

POWER LOCKS DE

POWER LOCKS - DE

Type DE Spc.	Fundamental dimensions			SizesXN	Rated load		Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
Type DE Spc.	L2	L	L1	SizesXN	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
25X50	32	40	46	M6X6	0.73	70	250	97	17	1.28
28X55	32	40	46	M6X6	0.82	70	220	117	17	1.35
30X55	32	40	46	M6X6	0.9	70	210	117	17	1.47
35X60	44	54	60	M6X7	1.22	80	150	107	17	1.55
38X65	44	54	60	M6X10	2.26	130	240	124	17	1.58
40X65	44	54	60	M6X10	2.39	130	230	124	17	1.68
42X75	44	54	62	M8X7	2.51	130	220	120	41	1.76
45X75	44	54	62	M8X7	2.69	130	200	120	41	1.85
48X80	56	64	72	M8X8	3.27	150	220	130	41	1.96
50X80	56	64	72	M8X8	3.41	150	170	130	41	2.04
55X85	56	64	72	M8X9	4.22	170	170	110	41	2.15
60X90	56	64	72	M8X10	5.11	180	170	120	41	2.25
65X95	56	64	72	M8X10	5.54	190	160	110	41	2.39
70X110	70	78	88	M10X10	10.15	310	200	130	83	2.48
75X115	70	78	88	M10X10	10.88	320	190	120	83	2.62
80X120	70	78	88	M10X12	12.76	340	190	130	83	2.76
85X125	70	78	88	M10X12	14.8	380	200	140	83	2.9
90X130	70	78	88	M10X12	15.65	380	190	130	83	3.04
95X135	70	78	88	M10X12	16.53	380	180	130	83	3.17
100X145	90	100	112	M12X12	23.25	510	180	120	145	5.44
110X155	90	100	112	M12X12	28.01	530	170	130	145	6
120X165	90	100	112	M12X14	35.51	650	190	140	145	6.88
130X180	104	116	130	M14X12	45.13	770	180	130	230	8.88
140X190	104	116	130	M14X14	56.7	870	190	140	230	9.44
150X200	104	116	130	M14X16	65.1	940	190	140	230	10.08
160X210	104	116	130	M14X16	74.05	1000	190	150	230	10.72
170X225	134	148	164	M16X14	95.25	1220	170	130	355	15.68
180X235	134	148	164	M16X16	108.05	1290	170	130	355	16.48
190X250	134	148	164	M16X16	121.65	1360	170	130	355	19.04
200X260	134	148	164	M16X16	128.06	1370	160	130	355	19.92
220X265	134	148	164	M16X18	158.48	1580	170	130	355	23.68
