POWER LOCKS D

POWER LOCKS - D

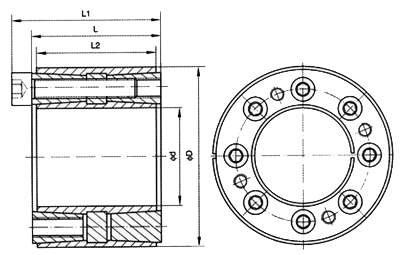

Type D Spc.	Fundamental dimensions			SizesXN	Rated load		Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
Type D Spc.	L2	L	L1	SizesXN	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ph Mpa	Ma N.m	Weight Kg
45X75	56	64	72	M8X9	160	3.51	179	108	41	1.25
48X80	56	64	72	M8X9	160	3.72	168	101	41	1.41
50X80	56	64	72	M8X9	170	4.3	162	101	41	1.35
55X85	56	64	72	M8X9	170	4.7	147	95	41	1.45
60X90	56	64	72	M8X11	190	5.81	165	110	41	1.55
65X95	56	64	72	M8X11	190	6.1	130	89	41	1.92
70X110	70	78	88	M10X11	330	11.8	179	114	83	3.11
75X115	70	78	88	M10X11	330	12.6	167	109	83	3.28
80X1120	70	78	88	M10X12	360	14.7	171	114	83	3.45
85X125	70	78	88	M10X12	360	15.6	161	109	83	3.63
90X130	70	78	88	M10X13	390	17.9	165	114	83	3.8
95X135	70	78	88	M10X13	390	18.9	156	110	83	3.97
100X145	90	100	112	M12X12	467	23.3	181	108	145	6.8
110X155	90	100	112	M12X13	553	30.4	190	110	145	7.5
120X165	90	100	112	M12X15	617	37	195	119	145	8.6
130X180	104	116	130	M14X13	759	49	180	111	230	11.1
140X190	104	116	130	1M14X15	843	59	186	121	230	11.8
150X200	104	116	130	M14X16	897	67	185	123	230	12.6
160X210	104	116	130	M14X17	950	76	183	123	230	13.4
170X225	134	146	162	M16X15	1223	104	172	110	355	19.6
180X235	134	146	162	M16X16	1289	116	172	113	355	20.6
190X250	134	146	162	M16X17	1363	130	172	113	355	23.8
200X260	134	146	162	M16X17	1368	136	172	108	355	24.9
220X285	134	146	162	M16X20	1582	174	172	118	355	29.6
240X305	134	146	162	M16X22	1725	207	172	120	355	31.9
260X325	134	146	162	M16X22	1800	225	170	110	355	34.3
280X355	165	177	197	M20X20	2429	340	168	118	690	52
300X375	165	177	197	M20X22	2540	381	161	112	690	55.3
320X405	165	177	197	M20X22	2781	431	175	122	690	67.3
340X425	165	177	197	M20X24	2994	509	171	108	690	71
