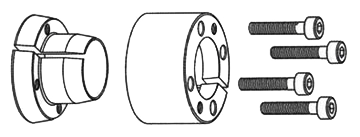

POWER LOCKS FAR

POWER LOCKS - FAR

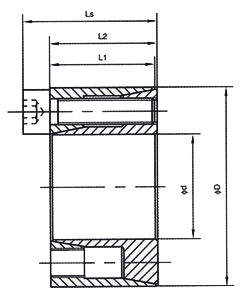

Type FAR Spc.	Fundamental dimensions			SizesXN	Rated load		Ps Mpa	Ph Mpa	Ma N.m	Weight kg
Type FAR Spc.	L1	L2	Ls	SizesXN	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ph Mpa	Ma N.m	Weight kg
5X16	10.5	11	13.5	M2.5X3	2	6	150	55	1.2	0.012
6X16	10.5	11	13.5	M2.5X3	3	9	184	69	1.2	0.012
6.35X16	10.5	11	13.5	M2.5X3	3	10	173	69	1.2	0.012
7X17	10.5	11	13.5	M2.5X3	3	11	157	65	1.2	0.013
8X18	10.5	11	13.5	M2.5X3	3	12	138	61	1.2	0.015
9X20	12.5	13	15.5	M2.5X4	4	18	138	62	1.2	0.02
9.53X20	12.5	13	15.5	M2.5X4	4	19	130	62	1.2	0.02
10X20	12.5	13	15.5	M2.5X4	4	20	124	62	1.2	0.019
11X22	12.5	13	15.5	M2.5X4	4	22	113	56	1.2	0.024
12X22	12.5	13	15.5	M2.5X4	4	24	104	56	1.2	0.022
14X24	16.5	17	20	M3X4	6	42	99	53	2.1	0.039
15X28	16.5	17	20	M3X4	6	44	93	50	2.1	0.044
16X32	16.5	17	21	M4X4	10.4	83	152	76	4.9	0.067
17X35	20.5	21	25	M4X4	10.4	88	116	56	4.9	0.09
18X35	20.5	21	25	M4X4	10.4	93	109	56	4.9	0.087
19X35	20.5	21	25	M4X4	10.4	99	104	56	4.9	0.083
20X38	20.5	21	26	M5X4	17	170	161	85	10	0.10
22X40	20.5	21	26	M5X4	17	187	146	80	10	0.11
24X47	25	26	32	M6X4	24	287	153	78	17	0.20
25X47	25	26	32	M6X4	24	299	147	78	17	0.19
25.4X47	25	26	32	M6X4	24	304	144	78	17	0.18
28X50	25	26	32	M6X6	36	503	196	110	17	0.22
30X55	25	26	32	M6X6	36	539	183	100	17	0.27
32X55	25	26	32	M6X6	36	575	172	100	17	0.25
35X60	30	31	37	M6X8	48	838	176	102	17	0.36
38X65	30	31	37	M6X8	48	910	162	95	17	0.43
40X65	30	31	37	M6X8	48	958	154	95	17	0.40
42X75	35	36	44	M8X6	66.3	1394	175	98	41	0.67
45X75	35	36	44	M8X6	66.3	1493	163	98	41	0.63
48X80	35	36	44	M8X8	88.5	2124	204	122	41	0.74
50X80	35	36	44	M8X8	88.5	2212	196	122	41	0.70
