POWER LOCKS FB1

POWER LOCKS - FB1

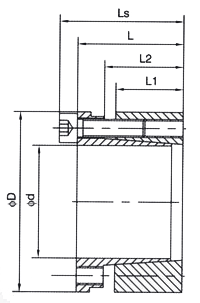

Type FB1 Spc.	Fundamental dimensions				SizesXN	Rated load		Ps Mpa	Ph Mpa	Ma N.m	Weight kg
Type FB1 Spc.	L1	L2	L	Ls	SizesXN	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ph Mpa	Ma N.m	Weight kg
19x47	26	30	39	45	M6X6	54	0.54	260	105	17	0.35
20X47	26	30	39	45	M6X6	54	0.55	250	105	17	0.36
22X47	26	30	39	45	M6X6	54	0.6	230	105	17	0.44
24X50	26	30	39	45	M6X6	54	0.65	210	100	17	0.47
25X50	26	30	39	45	M6X6	54	0.68	200	100	17	0.48
28X55	26	30	39	45	M6X6	54	0.78	180	95	17	0.55
30X55	26	30	39	45	M6X6	54	0.82	170	95	17	0.76
32X60	26	30	39	45	M6X9	82	1.31	246	131	17	0.79
35X60	26	30	39	45	M6X9	82	1.44	225	131	17	0.81
38X65	26	30	39	45	M6X9	82	1.56	207	121	17	0.87
40X65	26	30	39	45	M6X9	82	1.64	197	121	17	0.94
42X75	30	35	47	55	M8X6	99	2.08	215	120	41	1.02
45X75	30	35	47	55	M8X6	99	2.23	200	120	41	1.06
48X80	30	35	47	55	M8X6	99	2.33	215	115	41	1.7
50X80	30	35	47	55	M8X6	99	2.43	201	115	41	1.79
55X85	30	35	47	55	M8X9	152	4.18	244	160	41	1.89
60X90	30	35	47	55	M8X9	152	4.56	225	152	41	1.98
65X95	30	35	47	55	M8X9	152	4.94	210	145	41	2.15
70X110	40	46	67	77	M10X7	186	6.5	214	136	83	2.24
75X115	40	46	67	77	M10X7	186	7	200	130	83	3.07
80X120	40	46	67	77	M10X7	186	7.4	187	125	83	3.35
85X125	40	46	67	77	M10X8	213	9	200	140	83	3.59
90X130	40	46	67	77	M10X8	213	9.6	188	134	83	5.04
95X135	40	46	67	77	M10X10	267	12.6	197	139	83	5.38
100X145	46	52	77	89	M12X7	270	13.3	174	117	145	5.81
110X155	46	52	77	89	M12X7	270	14.7	158	109	145	6.67
120X165	46	52	77	89	M12X8	309	18.4	182	130	145	7.61
130X180	46	52	77	89	M12X10	388	25.1	193	134	145	8.05
140X190	51	59	88	102	M14X11	485	36.2	203	152	230	8.9
150X200	51	59	88	102	M14X12	551	41.3	216	162	230	9.58
160X210	51	59	88	102	M14X13	651	50.5	213	165	230	10.7
170X225	51	59	88	102	M14X14	643	54.6	223	168	230	11.7
180X235	51	59	88	102	M14X14	643	57.8	210	161	230	13.5
190X250	51	59	88	102	M14X15	689	65.4	214	162	230	15.4
200X260	51	59	88	102	M14X15	689	68.8	203	156	230	17.9
220X285	64	72	106	122	M16X12	948	88.1	210	165	355	20.3
