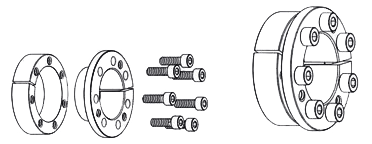

POWER LOCKS FE

POWER LOCKS - FE

Type FE Spc.	Fundamental dimensions					SizesXN	Rated load		Ps Mpa	Ph Mpa	Ma N.m	Weight kg
Type FE Spc.	L1	L2	L	Ls	D1	SizesXN	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ph Mpa	Ma N.m	Weight kg
14X55	17	22	30	38	62	M8X3	18	0.127	208	56	25	0.81
16X55	17	22	30	38	62	M8X3	18	0.142	181	56	25	0.87
18X55	17	22	30	38	62	M8X3	18	0.157	161	56	25	0.94
19X55	17	22	30	38	62	M8X3	18	0.165	152	56	25	1.02
20X55	17	22	30	38	62	M8X3	18	0.172	145	56	25	1.06
22X55	17	22	30	38	62	M8X3	25.5	0.285	186	75	35	1.7
24X55	17	22	30	38	62	M8X3	25.5	0.307	170	75	35	1.79
25X55	17	22	30	38	62	M8X3	25.5	0.315	163	75	35	1.89
28X55	17	22	30	38	62	M8X3	31.5	0.395	175	91	41	1.98
30X55	17	22	30	38	62	M8X3	31.5	0.425	163	91	41	2.15
24X65	17	22	30	38	72	M8X5	37.4	0.44	244	91	41	0.94
25X65	17	22	30	38	72	M8X5	37.4	0.46	234	91	41	1.02
28X65	17	22	30	38	72	M8X5	43.6	0.6	243	105	35	1.06
30X65	17	22	30	38	72	M8X5	43.6	0.64	227	105	35	1.7
32X65	17	22	30	38	72	M8X5	43.6	0.69	213	105	35	1.79
35X65	17	22	30	38	72	M8X5	52.5	0.81	234	126	41	1.89
38X65	17	22	30	38	72	M8X5	52.5	0.95	216	126	41	1.98
40X65	17	22	30	38	72	M8X5	52.5	0.99	205	126	41	2.15
30X80	20	25	33	41	87	M8X7	56.5	0.78	232	87	30	1.7
32X80	20	25	33	41	87	M8X7	56.5	0.83	218	87	30	1.79
35X80	20	25	33	41	87	M8X7	61	1.06	232	102	35	1.89
38X80	20	25	33	41	87	M8X7	61	1.15	214	102	35	1.98
40X80	20	25	33	41	87	M8X7	61	1.22	203	102	41	2.15
42X80	20	25	33	41	87	M8X7	73.5	1.36	233	123	41	2.24
45X80	20	25	33	41	87	M8X7	73.5	1.55	217	123	41	3.07
48X80	20	25	33	41	87	M8X7	73.5	1.66	203	123	41	3.35
50X80	20	25	33	41	87	M8X7	73.5	1.73	195	123	41	3.59
