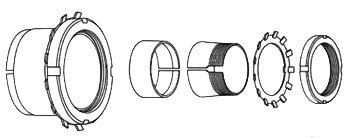

POWER LOCKS HLL

POWER LOCKS - HLL

Type HLL Spc.	Fundamental dimensions			Locking Nut		Rated load		Ps Mpa	Ph Mpa	Weight kg
Type HLL Spc.	B	H	E	SizesXN	Ma (N.m)	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ph Mpa	Weight kg
14X25	20	30	32	M20X1.0	95	9	0.064	85	45	0.11
15X25	20	30	32	M20X1.0	95	9	0.07	80	45	0.11
16X25	20	30	32	M20X1.0	95	9	0.073	75	45	0.11
17X25	20	32	32	M20X1.0	95	9	0.08	70	45	0.13
18X30	20	32	38	M25X1.5	160	9	0.091	65	45	0.13
19X30	20	32	38	M25X1.5	160	11	0.105	75	45	0.13
20X30	20	32	38	M25X1.5	160	11	0.112	70	45	0.15
22X35	25	36	45	M30X1.5	220	14	0.163	70	45	0.15
24X35	25	36	45	M30X1.5	220	14	0.178	65	45	0.17
25X35	25	36	45	M30X1.5	220	14	0.185	60	45	0.17
28X40	30	42	52	M35X1.5	340	17	0.25	55	40	0.17
30X40	30	42	52	M35X1.5	340	17	0.27	50	40	0.26
32X45	30	44	58	M40X1.5	480	21	0.35	60	45	0.26
35X45	30	44	58	M40X1.5	480	21	0.39	55	45	0.26
38X50	30	45	65	M45X1.5	680	26	0.51	60	45	0.30
40X50	30	45	65	M45X1.5	680	26	0.52	55	45	0.33
42X55	30	46	70	M50X1.5	870	30	0.63	65	50	0.38
45X55	30	46	70	M50X1.5	870	30	0.68	60	50	0.45
48X60	30	46	75	M55X2.0	970	35	0.84	60	50	0.51
50X60	30	46	75	M55X2.0	970	35	0.88	60	50	0.66
55X65	30	46	80	M60X2.0	1100	37	1.03	60	50	0.72
60X70	30	52	85	M60X2.0	1300	45	1.36	65	55	0.80
