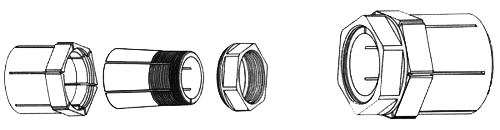

POWER LOCKS ML-C

POWER LOCKS - ML-C

Type ML-C Spc.	Fundamental dimensions						Rated load		Ph Mpa	Ps Mpa	Ma N.m	Weight kg
Type ML-C Spc.	L1	L2	A1	A2	B1	B2	Ft(Kn)	Mt(Kn.m)	Ph Mpa	Ps Mpa	Ma N.m	Weight kg
15X38	38	19	32	38.1	8	8	0.18	13.38	76	314	196	0.23
16X38	38	19	32	38.1	8	8	0.19	14.70	76	297	196	0.22
17X38	38	19	32	38.1	8	8	0.20	16.66	76	295	196	0.21
18X38	38	19	32	38.1	8	8	0.21	17.98	76	270	196	0.2
19X38	38	19	32	38.1	8	8	0.22	19.60	76	245	196	0.19
20X45	47.5	21.5	38	44.5	11	9.5	0.25	20.97	65	285	240	0.31
22X45	47.5	21.5	38	44.5	11	9.5	0.27	23.97	65	255	240	0.3
24X45	47.5	21.5	38	44.5	11	9.5	0.30	26.97	65	235	240	0.29
25X45	47.5	21.5	38	44.5	11	9.5	0.31	28.13	65	295	240	0.28
28X51	57	25.5	46	50.8	13	14.5	0.34	31.96	54	270	275	0.45
30X51	57	25.5	46	50.8	13	14.5	0.36	34.69	54	250	275	0.43
32X51	57	25.5	46	50.8	13	14.5	0.38	37.43	54	235	275	0.41
34X60.5	70	38	50	60.3	14	13	0.42	40.18	45	295	330	0.77
35X60.5	70	38	50	60.3	14	13	0.43	41.55	45	290	330	0.75
36X60.5	70	38	50	60.3	14	13	0.44	42.92	45	270	330	0.74
38X60.5	70	38	50	60.3	14	13	0.47	45.67	45	260	330	0.72
40X67	79.5	43	60	66.7	14.5	17.5	0.57	48.71	38	270	420	1.05
42X67	79.5	43	60	66.7	14.5	17.5	0.59	52.23	38	245	420	1.02
45X73	90.5	51	65	73	16	19	0.80	56.35	29	260	585	1.36
48X73	90.5	51	65	73	16	19	0.85	61.64	29	250	585	1.33
50X73	90.5	51	65	73	16	19	0.88	64.38	29	280	585	1.31
55X80	95.3	54	70	79.4	16	20.5	1.04	66.44	24	260	680	2.13
60X86	98.4	57.2	75	85.7	17.5	19	1.06	67.32	20	250	860	2.27
65X92	103.2	60.3	82	92.1	17.5	20.5	1.33	68.11	17	260	880	2.68
70X92	103.2	60.3	82	92.1	17.5	20.5	1.45	69.00	17	250	880	2.58
75X100	108	63.5	90	98.4	19	20.5	1.61	70.10	16	260	980	2.72
