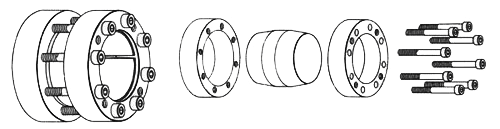

POWER LOCKS SK

POWER LOCKS SK

Type SK Spc.	Fundamental dimensions		SizesXN	Rated load		Ps Mpa	Ma Mpa	Weight kg
Type SK Spc.	B	H	SizesXN	Ft(Kn)	Mt(Kn.m)	Ps Mpa	Ma Mpa	Weight kg
15X45	50	56	M6X4	16.8	0.126	127	17	0.4
16X45	50	56	M6X4	16.8	0.134	119	17	0.4
17X45	50	56	M6X4	16.8	0.142	112	17	0.4
18X50	50	56	M6X4	16.8	0.151	105	17	0.5
19X50	50	56	M6X4	16.8	0.159	100	17	0.5
20X50	50	56	M6X4	16.8	0.168	95	17	0.5
22X55	60	66	M6X4	25.2	0.277	103	17	0.7
24X55	60	66	M6X4	25.2	0.302	95	17	0.73
25X55	60	66	M6X6	25.2	0.315	91	17	0.77
28X60	60	66	M6X6	25.2	0.327	87	17	0.91
30X60	60	66	M6X6	25.2	0.352	81	17	0.81
32X65	60	66	M6X6	31.2	0.378	76	17	0.80
35X75	75	83	M8X4	31.2	0.499	80	42	1.30
38X75	75	83	M8X4	31.2	0.546	73	42	1.20
40X75	75	83	M8X4	31.2	0.592	67	42	1.40
42X78	75	83	M8X4	31.2	0.624	64	42	1.33
45X85	85	93	M8X6	46.8	0.982	74	42	2.30
48X90	85	93	M8X6	46.8	1.053	69	42	2.30
50X90	85	93	M8X6	46.8	1.123	65	42	2.50
55X95	85	93	M8X8	62.4	1.17	62	42	2.40
60X100	85	93	M8X8	62.4	1.71	58	42	3.00
65X105	85	93	M8X8	62.4	1.87	53	42	3.30
70X115	100	110	M10X6	62.4	2.02	49	84	4.10
75X120	100	110	M10X6	91	2.12	47	84	3.80
80X125	100	110	M10X8	98.4	3.44	66	84	5.20
85X130	100	110	M10X8	123	3.69	62	84	5.50
90X135	100	110	M10X8	123	4.92	73	84	7.00
95X140	120	132	M10X8	123	5.22	68	84	7.50
100X150	120	132	M12X8	144	5.53	65	145	7.80
105X155	120	132	M12X8	144	5.84	57	145	7.90
110X160	120	132	M12X8	180	7.20	65	145	10.4
