ADJUSTABLE SPEED PULLEYS TB-1

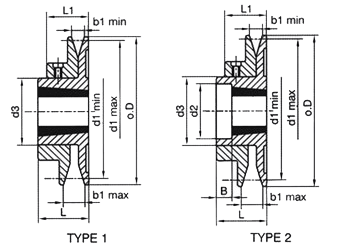

TB -1

Part Number	Type	Bush	O.D.	L	L1	d max	b1		dr		set screws	B	d2	d3
Part Number	Type	Bush	O.D.	L	L1	d max	min	max	min	max	set screws	B	d2	d3
093-1	2	1108	96	36.5	29	28	13	21	60 63	78 85	M6x6	13.5	39	50
108-1	1	1215	108	38	30.5	32	13	21	75 78 80 83	92 100 92 100	M6x6	__	__	60
120-1	1	1215	120	38	30.5	32	13	21	87 90 92 95	104 112 104 112	M6x6	__	__	60
138-1	1	1615	138	38	30.5	42	13	21	105 108 110 113	122 130 122 130	M6x6	__	__	75
160-1	2	1615	160	45	35.5	42	17	27	117 120 122 128	138 150 138 150	M8x8	6.5	58	75
180-1	2	2012	180	45	35.5	50	17	27	137 140 142 148	158 170 158 170	M8x8	12.5	71	90
200-1	2	2012	200	45	35.5	50	17	27	157 160 162 168	177 190 177 190	M8x8	12.5	71	90
