MULTI WEDGED PULLEYS J-12

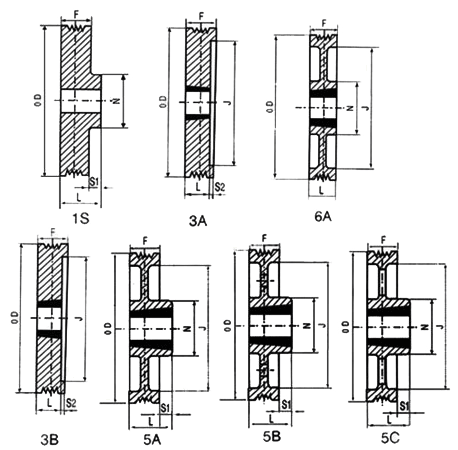

J -12

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PJ 32-12	-	32	1S	28	-	32	40	-	8	-	0.06
PJ 36-12	-	36	1S	32	-	32	40	-	8	-	0.09
PJ 40-12	-	40	1S	35	-	32	40	-	8	-	0.10
PJ 45-12	-	45	1S	40	-	32	40	-	8	-	0.13
PJ 50-12	-	50	1S	45	-	32	40	-	8	-	0.17
PJ 56-12	-	56	1S	51	-	32	40	-	8	-	0.21
PJ 63-12	1108	63	3B	-	46	32	22	-	-	10	0.33
PJ 71-12	1210	71	3B	-	56	32	25	-	-	7	0.44
PJ 75-12	1210	75	3B	-	60	32	25	-	-	7	0.54
PJ 80-12	1210	80	3B	-	65	32	25	-	-	7	0.70
PJ 85-12	1210	85	3B	-	69	32	25	-	-	7	0.76
PJ 90-12	1610	90	3B	-	74	32	25	-	-	7	0.88
PJ 95-12	1610	95	3B	-	79	32	25	-	-	7	0.96
PJ 100-12	1610	100	3B	-	84	32	25	-	-	7	1.00
PJ 106-12	1610	106	3B	-	90	32	25	-	-	7	1.20
PJ 112-12	1610	112	3B	-	96	32	25	-	-	7	1.37
PJ 118-12	1610	118	3B	-	102	32	25	-	-	7	1.45
PJ 125-12	1610	125	3B	-	109	32	25	-	-	7	1.75
PJ 132-12	2012	132	3B	-	115	32	32	-	-	-	1.85
PJ 140-12	2012	140	3B	-	125	32	32	-	-	-	2.15
PJ 160-12	2012	160	3B	-	144	32	32	-	-	-	2.40
PJ 180-12	2012	180	6A	105	164	32	32	12	-	-	2.62
PJ 200-12	2517	200	6A	120	184	32	32	12	-	-	3.54
PJ 224-12	2517	224	5A	120	208	32	45	12	13	-	3.85
PJ 250-12	2517	250	5A	120	234	32	45	12	13	-	4.00
PJ 280-12	2517	280	5B	120	264	32	45	12	13	-	4.70
PJ 315-12	2517	315	5B	120	293	32	45	12	13	-	5.20
PJ 355-12	2517	355	5C	120	333	32	45	14	13	-	6.00
PJ 400-12	2517	400	5C	120	378	32	45	14	13	-	7.00
