MULTI WEDGED PULLEYS J-16

J -16

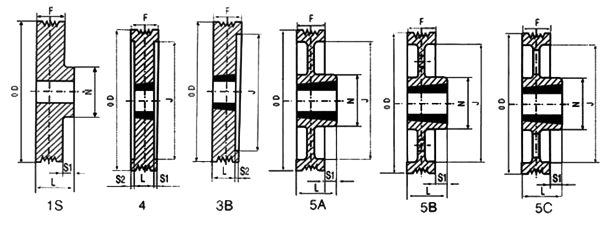

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PJ 45-16	-	45	1S	40	-	42	48	-	6	-	0.18
PJ 50-16	-	50	1S	45	-	42	48	-	6	-	0.21
PJ 56-16	-	56	1S	51	-	42	48	-	6	-	0.26
PJ 63-16	1108	63	4	-	46	42	22	-	10	10	0.40
PJ 71-16	1210	71	4	-	56	42	25	-	8.5	8.5	0.50
PJ 75-16	1210	75	4	-	60	42	25	-	8.5	8.5	0.62
PJ 80-16	1210	80	4	-	65	42	25	-	8.5	8.5	0.24
PJ 85-16	1210	85	4	-	69	42	25	-	8.5	8.5	0.87
PJ 90-16	1610	90	4	-	74	42	25	-	8.5	8.5	0.98
PJ 95-16	1610	95	4	-	79	42	25	-	8.5	8.5	1.00
PJ 100-16	1610	100	4	-	84	42	25	-	8.5	8.5	1.00
PJ 106-16	1610	106	4	-	90	42	25	-	8.5	8.5	1.30
PJ 112-16	2012	112	3B	-	96	42	32	-	10	-	1.50
PJ 118-16	2012	118	3B	-	102	42	32	-	10	-	1.80
PJ 125-16	2012	125	3B	-	109	42	32	-	70	-	2.00
PJ 132-16	2012	132	3B	-	115	42	32	-	10	-	2.30
PJ 140-16	2012	140	3B	-	125	42	32	-	10	-	2.60
PJ 160-16	2012	160	3B	-	144	42	32	-	10	-	3.50
PJ 180-16	2517	180	5A	120	164	42	45	12	3	-	4.40
PJ 200-16	2517	200	5A	120	184	42	45	12	3	-	4.70
PJ 224-16	2517	224	5A	120	208	42	45	12	3	-	4.80
PJ 250-16	2517	250	5A	120	234	42	45	12	3	-	5.10
PJ 280-16	2517	280	5B	120	264	42	45	12	3	-	5.30
PJ 315-16	2517	315	5B	120	293	42	45	12	3	-	6.00
PJ 355-16	2517	355	5C	120	333	42	45	14	3	-	7.10
PJ 400-16	2517	400	5C	120	378	42	45	14	3	-	8.70
