MULTI WEDGED PULLEYS J-20

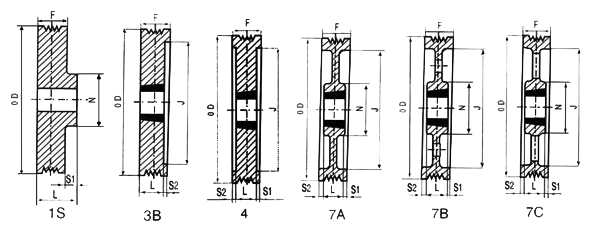

J -20

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PJ 45-20	-	45	1S	40	-	51	58	-	7	-	0.20
PJ 50-20	-	50	1S	45	-	51	58	-	7	-	0.26
PJ 56-20	-	56	1S	51	-	51	58	-	7	-	0.33
PJ 63-20	-	63	1S	55	-	51	58	-	7	-	0.41
PJ 71-20	1210	71	4	-	56	51	25	-	13	13	0.63
PJ 75-20	1210	75	4	-	60	51	25	-	13	13	0.71
PJ 80-20	1210	80	4	-	65	51	25	-	13	13	0.83
PJ 85-20	1210	85	4	-	69	51	25	-	13	13	1.00
PJ 90-20	1210	90	4	-	72	51	25	-	13	13	1.10
PJ 95-20	1610	95	4	-	79	51	25	-	13	13	1.30
PJ 100-20	1610	100	4	-	84	51	25	-	13	13	1.50
PJ 106-20	1610	106	4	-	90	51	25	-	13	13	1.70
PJ 112-20	2012	112	4	-	96	51	32	-	9.5	9.5	1.90
PJ 118-20	2012	118	4	-	102	51	32	-	9.5	9.5	2.10
PJ 125-20	2517	125	3B	-	109	51	45	-	-	6	2.70
PJ 132-20	2517	132	3B	-	115	51	45	-	-	6	3.20
PJ 140-20	2517	140	3B	-	125	51	45	-	-	6	4.60
PJ 160-20	2517	160	3B	-	144	51	45	-	-	6	5.00
PJ 180-20	2517	180	3B	-	164	51	45	-	-	6	5.40
PJ 200-20	2517	200	7A	120	184	51	45	12	-	6	7.20
PJ 224-20	3020	224	7A	145	208	51	51	12	-	0	7.80
PJ 250-20	3020	250	7A	145	234	51	51	12	-	0	8.30
PJ 280-20	3020	280	7B	145	264	51	51	14	-	0	9.50
PJ 315-20	3020	315	7B	145	293	51	51	14	-	0	4.00
PJ 355-20	3020	355	7C	145	333	51	51	16	-	0	13.20
PJ 400-20	3020	400	7C	145	378	51	51	16	-	0	15.30
