MULTI WEDGED PULLEYS J-4

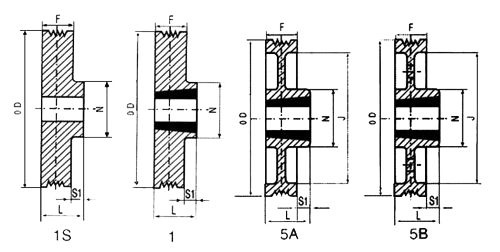

J -4

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PJ 20-4	-	20	1S	15	-	13	25	-	12	-	0.05
PJ 25-4	-	25	1S	22	-	13	25	-	12	-	0.07
PJ 28-4	-	28	1S	25	-	13	25	-	12	-	0.09
PJ 32-4	-	32	1S	28	-	13	25	-	12	-	0.12
PJ 36-4	-	36	1S	32	-	13	25	-	12	-	0.16
PJ 40-4	-	40	1S	35	-	13	25	-	12	-	0.19
PJ 45-4	-	45	1S	40	-	13	25	-	12	-	0.25
PJ 50-4	-	50	1S	45	-	13	25	-	12	-	0.32
PJ 56-4	-	56	1S	51	-	13	25	-	12	-	0.40
PJ 63-4	1108	63	1	60	-	13	22	-	9	-	0.30
PJ 71-4	1108	71	1	60	-	13	22	-	9	-	0.42
PJ 75-4	1108	75	1	60	-	13	22	-	9	-	0.46
PJ 80-4	1108	80	1	60	-	13	22	-	9	-	0.49
PJ 85-4	1108	85	1	60	-	13	22	-	9	-	0.57
PJ 90-4	1108	90	1	60	-	13	22	-	9	-	0.61
PJ 95-4	1108	95	1	60	-	13	22	-	9	-	0.71
PJ 100-4	1108	100	1	60	-	13	22	-	9	-	0.76
PJ 112-4	1310	112	1	80	-	13	25	-	12	-	1.03
PJ 125-4	1310	125	1	80	-	13	25	-	12	-	1.27
PJ 140-4	1310	140	1	80	-	13	25	-	12	-	1.57
PJ 160-4	1610	160	1	85	-	13	25	-	12	-	1.98
PJ 200-4	2012	200	5A	105	184	13	32	8	19	-	2.63
PJ 250-4	2012	250	5A	105	234	13	32	8	19	-	3.62
PJ 315-4	2012	315	5B	105	293	13	32	8	19	-	4.46
