MULTI WEDGED PULLEYS J-8

J -8

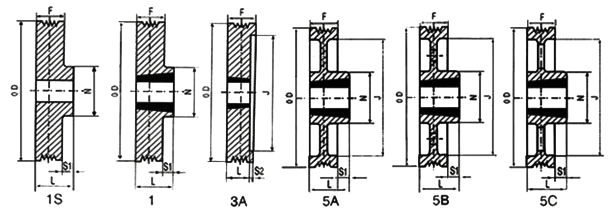

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PJ 20-8	-	20	1S	15	-	23	30	-	7	-	0.02
PJ 25-8	-	25	1S	22	-	23	30	-	7	-	0.03
PJ 28-8	-	28	1S	25	-	23	30	-	7	-	0.05
PJ 32-8	-	32	1S	28	-	23	30	-	7	-	0.06
PJ 36-8	-	36	1S	32	-	23	30	-	7	-	0.08
PJ 40-8	-	40	1S	35	-	23	30	-	7	-	0.10
PJ 45-8	-	45	1S	40	-	23	30	-	7	-	0.13
PJ 50-8	-	50	1S	45	-	23	30	-	7	-	0.16
PJ 56-8	-	56	1S	51	-	23	30	-	7	-	0.28
PJ 63-8	1108	63	1	-	46	23	22	-	-	1	0.40
PJ 71-8	1210	71	1	65	-	23	25	-	2	-	0.48
PJ 75-8	1210	75	1	70	-	23	25	-	2	-	0.58
PJ 80-8	1210	80	1	70	-	23	25	-	2	-	0.68
PJ 85-8	1210	85	1	75	-	23	25	-	2	-	0.79
PJ 90-8	1210	90	1	75	-	23	25	-	2	-	0.78
PJ 95-8	1610	95	1	85	-	23	25	-	2	-	0.91
PJ 100-8	1610	100	1	85	-	23	25	-	2	-	1.06
PJ 106-8	1610	106	1	85	-	23	25	-	2	-	1.30
PJ 112-8	1610	112	1	85	-	23	25	-	2	-	1.47
PJ 118-8	1610	118	1	85	-	23	25	-	2	-	1.65
PJ 125-8	1610	125	1	85	-	23	25	-	2	-	1.70
PJ 132-8	1610	132	1	85	-	23	25	-	2	-	1.80
PJ 140-8	1610	140	1	85	-	23	25	-	2	-	1.93
PJ 160-8	2012	160	1	105	-	23	32	-	9	-	1.95
PJ 180-8	2012	180	5A	105	164	23	32	12	9	-	2.30
PJ 200-8	2012	200	5A	105	184	23	32	12	9	-	2.42
PJ 224-8	2012	224	5A	105	208	23	32	12	9	-	2.66
PJ 250-8	2012	250	5A	105	234	23	32	12	9	-	3.26
PJ 280-8	2012	280	5B	105	264	23	32	12	9	-	5.20
PJ 315-8	2517	315	5B	120	293	23	45	15	22	-	5.80
PJ 355-8	2517	355	5C	120	333	23	45	14	22	-	6.00
PJ 400-8	2517	400	5C	120	378	23	45	14	22	-	6.50
