MULTI WEDGED PULLEYS L-12

L -12

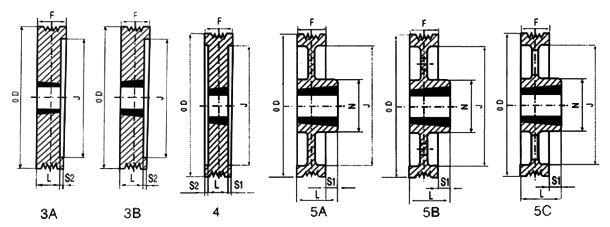

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PL 75-12	1108	75	3A	-	46	70	22	-	-	48	1.00
PL 80-12	1310	80	3A	-	58	70	25	-	-	45	1.15
PL 85-12	1310	85	3A	-	59	70	25	-	-	45	1.18
PL 90-12	1615	90	3A	-	68	70	38	-	-	32	1.30
PL 95-12	1615	95	3A	-	70	70	38	-	-	32	1.55
PL 100-12	1615	100	3A	-	71	70	38	-	-	32	1.40
PL 106-12	1615	106	3A	-	73	70	38	-	-	32	1.80
PL 112-12	2012	112	4	-	79	70	32	-	19	19	3.00
PL 118-12	2012	118	4	-	89	70	32	-	19	19	2.30
PL 125-12	2012	125	4	-	90	70	32	-	19	19	2.50
PL 132-12	2517	132	4	-	105	70	45	-	12.5	12.5	2.80
PL 140-12	2517	140	4	-	110	70	45	-	12.5	12.5	3.40
PL 160-12	2517	160	4	-	125	70	45	-	12.5	12.5	4.90
PL 180-12	2517	180	4	-	145	70	45	-	12.5	12.5	6.20
PL 200-12	2517	200	4	-	167	70	45	-	12.5	12.5	6.50
PL 224-12	3030	224	5A	125	191	70	76	14	6	-	7.50
PL 250-12	3030	250	5A	125	217	70	76	14	6	-	8.00
PL 280-12	3030	280	5B	145	247	70	76	16	6	-	8.80
PL 315-12	3030	315	5B	145	276	70	76	16	6	-	10.80
PL 355-12	3525	355	5C	168	316	70	89	20	19	-	12.70
PL 400-12	3525	400	5C	168	361	70	89	20	19	-	13.30
PL 450-12	3525	450	5C	168	411	70	89	22	19	-	19.00
PL 500-12	4030	500	5C	216	461	70	76	22	6	-	20.00
PL 560-12	4030	560	5C	216	521	70	76	25	6	-	25.00
PL 630-12	4030	630	5C	216	591	70	76	25	6	-	30.00
