MULTI WEDGED PULLEYS L-16

L -16

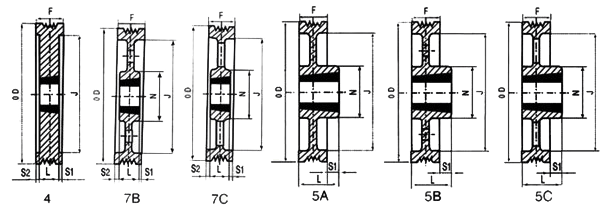

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PL 85-16	1615	85	4	-	68	89	38	-	25.5	25.5	1.20
PL 90-16	1615	90	4	-	68	89	38	-	25.5	25.5	1.60
PL 95-16	1615	95	4	-	70	89	38	-	25.5	25.5	1.70
PL 100-16	1615	100	4	-	71	89	38	-	25.5	25.5	1.80
PL 106-16	1615	106	4	-	73	89	38	-	25.5	25.5	2.30
PL 112-16	2012	112	4	-	79	89	32	-	28.5	28.5	2.50
PL 118-16	2012	118	4	-	89	89	32	-	28.5	28.5	2.60
PL 125-16	2012	125	4	-	90	89	32	-	28.5	28.5	2.80
PL 132-16	2517	132	4	-	105	89	45	-	22	22	3.20
PL 140-16	2517	140	4	-	110	89	45	-	22	22	4.10
PL 160-16	2517	160	4	-	125	89	45	-	22	22	5.50
PL 180-16	2517	180	4	-	145	89	45	-	22	22	7.40
PL 200-16	2517	200	4	-	167	89	45	-	22	22	9.40
PL 224-16	3030	224	7B	145	191	89	76	20	13	-	10.70
PL 250-16	3030	250	7B	145	217	89	76	20	13	-	12.00
PL 280-16	3030	280	7B	145	247	89	76	22	13	-	12.20
PL 315-16	3535	315	7B	168	276	89	89	22	0	0	13.80
PL 355-16	3535	355	7C	168	316	89	89	25	0	0	19.20
PL 400-16	3535	400	7C	168	361	89	89	25	0	0	19.20
PL 450-16	4040	450	5C	216	411	89	102	25	13	-	22.00
PL 500-16	4040	500	5C	216	461	89	102	28	13	-	28.20
PL 560-16	4040	560	5C	216	521	89	102	28	13	-	31.00
PL 630-16	4040	630	5C	216	591	89	102	28	13	-	35.30
