MULTI WEDGED PULLEYS L-20

L -20

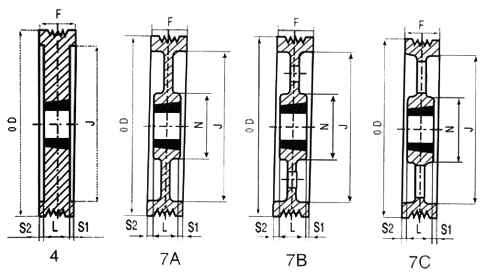

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PL 132-20	2517	132	4	-	105	108	45	-	31.5	31.5	4.00
PL 140-20	2517	140	4	-	110	108	45	-	31.5	31.5	4.40
PL 160-20	2517	160	4	-	125	108	45	-	31.5	31.5	5.80
PL 180-20	2517	180	4	-	145	108	45	-	31.5	31.5	8.00
PL 200-20	3030	200	4	-	167	108	76	-	31.5	31.5	11.00
PL 224-20	3030	224	7A	145	191	108	76	20	16	16	15.40
PL 250-20	3030	250	7A	145	217	108	76	20	16	16	21.00
PL 280-20	3535	280	7B	168	247	108	89	22	-	19	22.80
PL 315-20	3535	315	7B	168	276	108	89	22	-	19	25.60
PL 355-20	3535	355	7C	168	316	108	89	28	-	19	28.20
PL 400-20	4040	400	7C	216	361	108	102	28	-	6	29.80
PL 450-20	4040	450	7C	216	411	108	102	30	-	6	35.60
PL 500-20	4040	500	7C	216	461	108	102	30	-	6	37.60
PL 560-20	4040	560	7C	216	521	108	102	30	-	6	47.00
PL 630-20	4040	630	7C	216	591	108	102	30	-	6	53.00
