MULTI WEDGED PULLEYS L-8

L -8

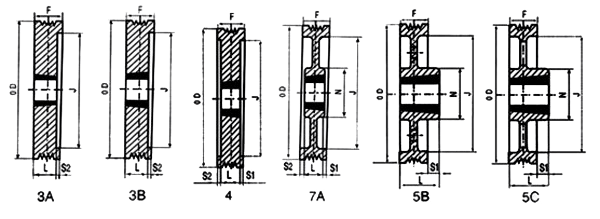

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PL 75-8	1108	75	3A	-	46	52	22	-	-	30	0.64
PL 80-8	1210	80	3A	-	58	52	25	-	-	27	0.67
PL 85-8	1210	85	3A	-	59	52	25	-	-	27	0.27
PL 90-8	1610	90	3A	-	68	52	25	-	-	27	1.00
PL 95-8	1610	95	3A	-	70	52	25	-	-	27	1.30
PL 100-8	1610	100	3A	-	71	52	25	-	-	27	1.10
PL 106-8	1610	106	4	-	73	52	25	-	13.5	13.5	1.20
PL 112-8	2012	112	4	-	79	52	32	-	10	10	1.20
PL 118-8	2012	118	4	-	89	52	32	-	10	10	1.52
PL 125-8	2012	125	4	-	90	52	32	-	10	10	1.80
PL 132-8	2012	132	4	-	105	52	32	-	10	10	2.00
PL 140-8	2012	140	4	-	110	52	32	-	10	10	2.50
PL 160-8	2012	160	4	-	125	52	32	-	10	10	2.90
PL 180-8	2517	180	3B	-	145	52	45	-	-	7	4.10
PL 200-8	2517	200	3B	-	167	52	45	-	-	7	4.70
PL 224-8	2517	224	7A	120	191	52	45	12	-	7	5.10
PL 250-8	2517	250	7A	120	217	52	45	12	-	7	6.40
PL 280-8	3020	280	7B	145	247	52	51	14	1	-	6.50
PL 315-8	3020	315	7B	145	276	52	51	14	1	-	6.80
PL 355-8	3020	355	7C	145	316	52	51	14	1	-	8.00
PL 400-8	3525	400	5C	166	361	52	63	16	11	-	9.20
PL 450-8	3525	450	5C	168	411	52	63	20	11	-	12.60
PL 500-8	4030	500	5C	216	461	52	76	20	24	-	13.00
PL 560-8	4030	560	5C	216	521	52	76	20	24	-	16.00
PL 630-8	4030	630	5C	216	591	52	76	20	24	-	17.60
