Multi Wedged Pulleys M-10

HomepageTransmission Parts >> Pulleys >> Multi Wedged Pulleys >> M-10

MULTI WEDGED PULLEYS M-10

M -10

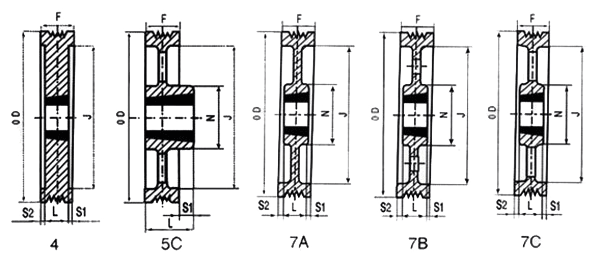

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PM 180-10	3030	180	4	-	130	112	76	-	18	18	9.00
PM 190-10	3030	190	4	-	145	112	76	-	18	18	10.50
PM 200-10	3030	200	4	-	150	112	76	-	18	18	11.00
PM 212-10	3535	212	4	-	165	112	89	-	11.5	11.5	16.10
PM 224-10	3535	224	4	-	177	112	89	-	11.5	11.5	17.10
PM 250-10	3535	250	4	-	203	112	89	-	11.5	11.5	19.00
PM 280-10	3535	280	7A	168	233	112	89	28	11.5	11.5	21.30
PM 315-10	3535	315	7B	168	268	112	89	28	11.5	11.5	26.00
PM 355-10	4040	355	7B	216	305	112	102	28	-	10	29.20
PM 400-10	4040	400	7C	216	350	112	102	35	-	10	32.90
PM 450-10	4040	450	7C	216	400	112	102	35	-	10	37.10
PM 500-10	4040	500	7C	216	450	112	102	35	-	10	41.10
PM 560-10	4545	560	5C	254	510	112	114	40	2	-	56.00
PM 630-10	4545	630	5C	254	580	112	114	40	2	-	63.00
PM 710-10	4545	710	5C	254	660	112	114	40	2	-	71.00
