Multi Wedged Pulleys M-16

HomepageTransmission Parts >> Pulleys >> Multi Wedged Pulleys >> M-16

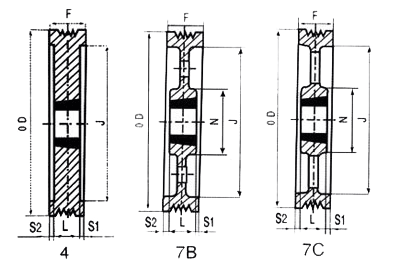

MULTI WEDGED PULLEYS M-16

M -16

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PM 180-16	3030	180	4	-	130	168	76	-	46	46	9.00
PM 190-16	3030	190	4	-	140	168	76	-	46	46	10.20
PM 200-16	3535	200	4	-	152	168	89	-	39.5	39.5	13.00
PM 212-16	3535	212	4	-	166	168	89	-	39.5	39.5	16.80
PM 224-16	3535	224	4	-	173	168	89	-	39.5	39.5	17.80
PM 250-16	3535	250	4	-	190	168	89	-	39.5	39.5	25.00
PM 280-16	3535	280	4	-	230	168	89	-	39.5	39.5	32.40
PM 315-16	4040	315	4	-	265	168	102	-	33	33	42.60
PM 355-16	4040	355	7B	216	305	168	102	35	33	33	47.00
PM 400-16	4040	400	7B	216	350	168	102	35	33	33	51.40
PM 450-16	4040	450	7C	216	400	168	102	45	33	33	56.50
PM 500-16	4040	500	7C	216	450	168	102	55	33	33	62.30
PM 560-16	4545	560	7C	254	500	168	114	55	27	27	72.00
PM 630-16	4545	630	7C	254	580	168	114	60	27	27	81.00
PM 710-16	4545	710	7C	254	660	168	114	60	27	27	91.30
