Multi Wedged Pulleys M-6

HomepageTransmission Parts >> Pulleys >> Multi Wedged Pulleys >> M-6

MULTI WEDGED PULLEYS M-6

M -6

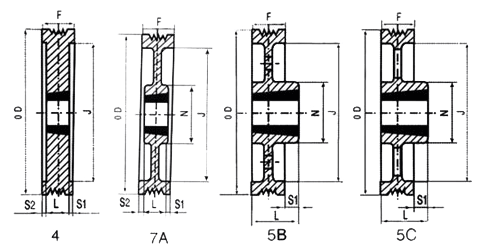

PART NO.	BUSHING	O.D	TYPE	N	J	F	L	E	S1	S2	KG
PM 180-6	2517	180	4	-	130	74	45	-	14.5	14.5	6.80
PM 190-6	2517	190	4	-	140	74	45	-	14.5	14.5	7.40
PM 200-6	3020	200	4	-	160	74	51	-	11.5	11.5	7.60
PM 212-6	3020	212	4	-	170	74	51	-	11.5	11.5	7.90
PM 224-6	3020	224	4	-	180	74	51	-	11.5	11.5	8.40
PM 250-6	3020	250	7A	145	205	74	51	22	11.5	11.5	9.00
PM 280-6	3020	280	7A	145	230	74	51	22	11.5	11.5	10.00
PM 315-6	3535	315	5B	168	272	74	89	25	15	-	11.80
PM 355-6	3535	355	5B	168	305	74	89	25	15	-	17.60
PM 400-6	4040	400	5C	216	350	74	102	28	28	-	20.20
PM 450-6	4040	450	5C	216	400	74	102	30	28	-	23.10
PM 500-6	4040	500	5C	216	450	74	102	30	28	-	25.90
PM 560-6	4040	560	5C	216	510	74	102	30	28	-	29.30
PM 710-6	4040	710	5C	216	660	74	102	30	28	-	44.00
