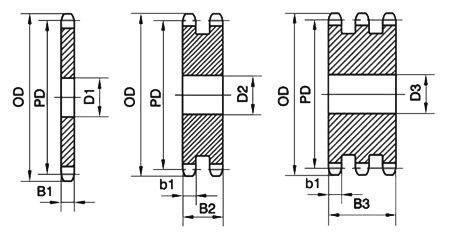

PILOT BORE PLATE WHEEL

SPC.	r3	C	B1	b1	B2	B3	Z	OD	PD	SIMPLEX	DUPLEX	TRIPLEX
										D1	D2	D3
03	5	0.4	2.3				8-125	14.80-200.70	13.06-198.96	4-14
04	6	0.6	2.6				8-125	18.00-241.20	15.67-238.75	5-16
05B	8	0.8	2.8	2.7	8.3		8-125	23.40-322.80	20.90-318.34	6-20	8-20
06B	10	1	5.3	5.2	15.4	25.6	8-125	28.60-383.60	24.89-379.02	6-25	10-25	8-25
081	13	0.8	3				8-125	39.50-512.20	33.18-505.37	8-25
083/084	13	1.3	4.5				8-125	39.5-168.2	33.18-505.37	8-25
08B	13	1.3	7.2	7	21	34.9	8-125	38-511	33.18-505.37	8-25	10-25	10-25
10B	16	1.6	9.1	9	25.5	42.1	8-125	48.40-640.10	41.48-631.71	10-30	10-30	10-30
12B	19	2	11.1	10.8	30.3	49.8	8-125	58.00-768.10	49.78-758.05	10-30	12-30	12-30
16B	26	2.5	16.2	15.8	47.7	79.6	8-125	77.90-1024.50	66.37-1010.73	16-30	16-40	16-40
20B	32	3.5	18.5	18.2	54.6	91	8-114	96.00-1168.20	82.96-1152.26	16-40	20-40	20-40
24B	38	4	24.1	23.6	72	120.3	8-95	113.0-1169.0	99.55-1152.33	20-40	25-40	25-40
28B	44	5	29.4	28.8	88.4	148	8-76	132.0-1095.0	116.15-1075.62	20-40	25-40	25-40
32B	51	6	29.4	28.8	87.4	146	8-76	152.00-1252.00	132.74-1229.27	25-40	25-40	25-40
