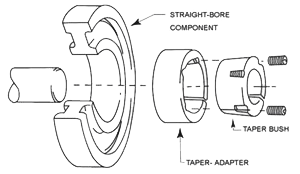

TAPER ADAPTERS

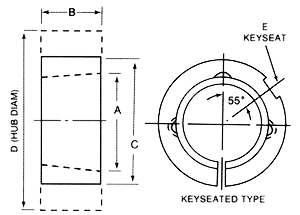

Adapter No.	Bush No.	A	B	C	D		E
Adapter No.	Bush No.	A	B	C	Grey iron	steel	Keyseat
1215	1215	1.7/8	1.1/2	2.3/8	3.3/8	3.1/4	1/4x1/8
1615	1615	2.1/4	1.1/2	2.3/4	3.3/4	3.1/2	3/8x1/8
2517	2517	3.3/8	1.3/4	4.1/8	5.1/2	5	5/8x1/8
2525	2525	3.3/8	2.1/2	4.1/8	5.1/4	5	5/8x1/8
3030	3030	4.1/4	3	5.1/8	6.7/8	6.1/4	3/4x3/16
3535	3535	5	3.1/2	6.1/4	8.3/8	7.7/8	7/8x3/16
4040	4040	5.3/4	4	7.1/4	10.1/8	9.3/8	1x3/16
4545	4545	6.3/8	4.1/2	7.7/8	11	10.1/4	1x3/16
