TIMING PULLEYS HTP 14M-115

HTP 14M-115

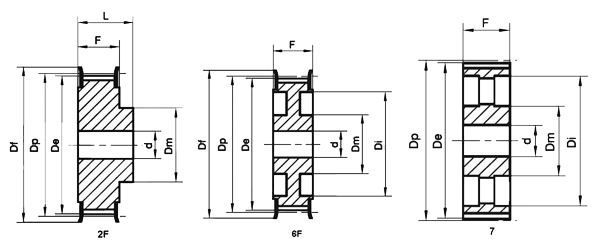

SPC	TYPE	Z	Dp	De	Df	Dm	DI	F	L	d
28-14M-115	2F	28	124.78	122.12	135	100.0	-	133	148	32
29-14M-115	2F	29	129.23	126.57	150	100.0	-	133	148	32
30-14M-115	2F	30	133.69	130.99	150	100.0	-	133	148	32
32-14M-115	2F	32	142.6	139.88	168	100.0	-	133	148	32
34-14M-115	2F	34	151.52	148.79	168	100.0	-	133	148	32
36-14M-115	2F	36	160.43	157.68	175	100.0	-	133	148	32
38-14M-115	2F	38	169.34	166.60	192	120.0	-	133	148	32
40-14M-115	2F	40	178.25	175.49	200	135.0	-	133	148	32
44-14M-115	2F	44	196.08	193.28	211	135.0	-	133	148	32
48-14M-115	2F	48	213.9	211.11	226	150.0	-	133	148	32
56-14M-115	2F	56	249.55	246.76	265	150.0	-	133	148	32
64-14M-115	6F	64	285.21	282.41	296	150.0	240	133	133	32
72-14M-115	7	72	320.86	318.06	-	150.0	278	133	133	32
80-14M-115	7	80	356.51	353.71	-	150.0	314	133	133	32
90-14M-115	7	90	401.07	398.28	-	150.0	358	133	133	32
112-14M-115	7	112	499.11	496.32	-	150.0	456	133	133	32
144-14M-115	7	144	641.71	638.92	-	150.0	600	133	133	32
168-14M-115	7	168	748.66	745.87	-	150.0	706	133	133	32
192-14M-115	7	192	855.62	852.82	-	165.0	813	133	133	32
216-14M-115	7	216	962.57	959.76	-	165.0	920	133	133	32
