TIMING PULLEYS HTP 14M-40

HTP 14M-40

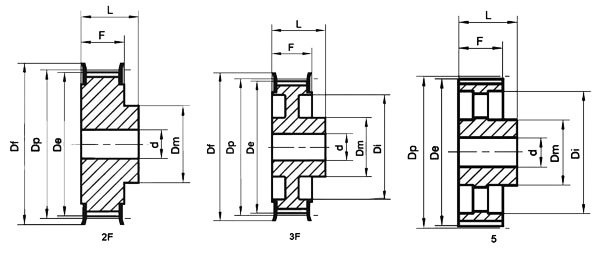

SPC	TYPE	Z	Dp	De	Df	Dm	DI	F	L	d
28-14M-40	2F	28	124.78	122.12	135	100.0	-	54	69	24
29-14M-40	2F	29	129.23	126.57	150	100.0	-	54	69	24
30-14M-40	2F	30	133.69	130.99	150	100.0	-	54	69	24
32-14M-40	2F	32	142.6	139.88	168	100.0	-	54	69	24
34-14M-40	2F	34	151.52	148.79	168	100.0	-	54	69	24
36-14M-40	2F	36	160.43	157.68	175	100.0	-	54	69	24
38-14M-40	2F	38	169.34	166.60	192	120.0	-	54	69	24
40-14M-40	2F	40	178.25	175.49	200	120.0	-	54	69	24
44-14M-40	2F	44	196.08	193.28	211	120.0	-	54	69	24
48-14M-40	3F	48	213.9	211.11	226	135.0	170	54	69	24
56-14M-40	3F	56	249.55	246.76	265	135.0	207	54	69	28
64-14M-40	3F	64	285.21	282.41	296	135.0	240	54	69	28
72-14M-40	5	72	320.86	318.06	-	135.0	278	54	69	28
80-14M-40	5	80	356.51	353.71	-	135.0	314	54	69	28
90-14M-40	5	90	401.07	398.28	-	135.0	358	54	69	28
112-14M-40	5	112	499.11	496.32	-	135.0	456	54	69	28
144-14M-40	5	144	641.71	638.92	-	135.0	600	54	69	28
168-14M-40	5	168	748.66	745.87	-	135.0	706	54	69	28
192-14M-40	5	192	855.62	852.82	-	135.0	813	54	69	28
216-14M-40	5	216	962.57	959.76	-	150.0	920	54	69	28
