TIMING PULLEYS HTP 8M-30

HTP 8M-30

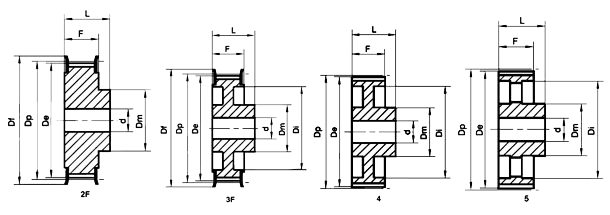

SPC	TYPE	Z	Dp	De	Df	Dm	DI	F	L	d
22-8M-30	2F	22	56.02	54.65	60	43.0	-	38	48	12
24-8M-30	2F	24	61.11	59.74	67	45.0	-	38	48	12
26-8M-30	2F	26	66.21	64.84	70	48.0	-	38	48	12
28-8M-30	2F	28	71.3	70.08	75	50.0	-	38	48	14
30-8M-30	2F	30	76.39	75.13	83	55.0	-	38	48	14
32-8M-30	2F	32	81.49	80.16	87	60.0	-	38	48	14
34-8M-30	2F	34	86.58	85.21	91	66.0	-	38	48	14
36-8M-30	2F	36	91.67	90.30	97	70.0	-	38	48	14
38-8M-30	2F	38	96.77	95.39	102	75.0	-	38	48	14
40-8M-30	2F	40	101.86	100.49	112	75.0	-	38	48	14
44-8M-30	2F	44	112.05	110.67	120	75.0	-	38	48	14
48-8M-30	2F	48	122.23	120.86	128	75.0	-	38	48	14
56-8M-30	3F	56	142.6	141.23	150	90.0	116	38	48	14
64-8M-30	3F	64	162.97	161.60	168	90.0	137	38	48	14
72-8M-30	3F	72	183.35	181.97	192	95.0	158	38	48	14
80-8M-30	4	80	203.72	202.35	-	100.0	180	38	48	14
90-8M-30	4	90	229.18	227.81	-	100.0	204	38	48	14
112-8M-30	5	112	285.21	283.83	-	100.0	254	38	48	18
144-8M-30	5	144	366.69	365.32	-	100.0	336	38	48	20
168-8M-30	5	168	427.81	426.44	-	100.0	400	38	48	20
192-8M-30	5	192	488.92	487.55	-	100.0	460	38	48	20
