TIMING PULLEYS H200

H200

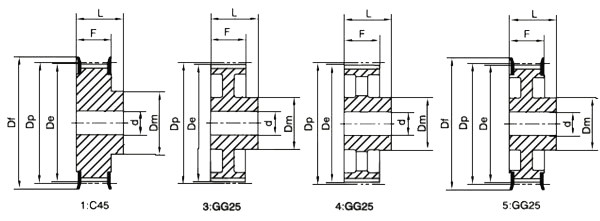

SPC	TYPE	Z	De	Dp	Df	Dm	F	L	d
14H200	1	14	55.22	56.59	63	40	58.7	70	18
15H200	1	15	59.27	60.64	70	45	58.7	70	18
16H200	1	16	63.31	64.67	70	45	58.7	70	18
17H200	1	17	67.35	68.72	75	45	58.7	70	18
18H200	1	18	71.39	72.77	79	55	58.7	70	18
19H200	1	19	75.44	76.81	83	60	58.7	70	18
20H200	1	20	79.48	80.85	87	62	58.7	70	18
21H200	1	21	83.52	84.89	91	65	58.7	70	18
22H200	1	22	87.56	88.93	94	68	58.7	70	18
23H200	1	23	91.61	92.98	102	72	58.7	70	18
24H200	1	24	95.65	97.03	102	72	58.7	70	18
25H200	1	25	99.69	101.06	112	72	58.7	70	18
26H200	1	26	103.73	105.11	112	80	58.7	70	18
27H200	1	27	107.78	109.15	120	80	58.7	70	18
28H200	1	28	111.82	113.18	120	80	58.7	70	18
29H200	1	29	115.86	117.23	120	80	58.7	70	18
30H200	1	30	119.9	121.29	128	80	58.7	70	18
32H200	1	32	127.99	129.36	135	80	58.7	70	18
33H200	1	33	132.03	133.40	142	80	58.7	70	18
34H200	1	34	136.07	137.45	150	80	58.7	70	18
35H200	1	35	140.12	141.39	150	80	58.7	70	18
36H200	1	36	144.16	145.54	158	80	58.7	70	18
38H200	1	38	152.24	153.62	158	80	58.7	70	18
40H200	1	40	160.33	161.70	168	80	58.7	70	18
42H200	1	42	168.41	169.79	175	80	58.7	70	18
44H200	5	44	176.5	177.88	184	80	58.7	70	18
45H200	5	45	180.54	181.91	192	80	58.7	70	18
48H200	5	48	192.67	194.03	200	90	58.7	75	24
50H200	3	50	200.75	202.13	-	90	58.7	75	24
52H200	3	52	208.84	210.21	-	90	58.7	75	24
57H200	4	57	229.05	230.42	-	90	58.7	75	24
58H200	4	58	233.09	234.47	-	90	58.7	75	24
60H200	4	60	241.18	242.55	-	100	58.7	75	24
68H200	4	68	273.53	274.90	-	100	58.7	75	28
70H200	4	70	281.61	282.98	-	100	58.7	75	28
72H200	4	72	289.69	291.06	-	120	58.7	75	28
84H200	4	84	338.2	339.57	-	120	58.7	75	28
96H200	4	96	386.71	388.09	-	120	58.7	75	28
120H200	4	120	483.73	485.12	-	120	58.7	75	28
150H200	4	150	605.01	606.38	-	120	58.7	75	28
