TIMING PULLEYS L100

L100

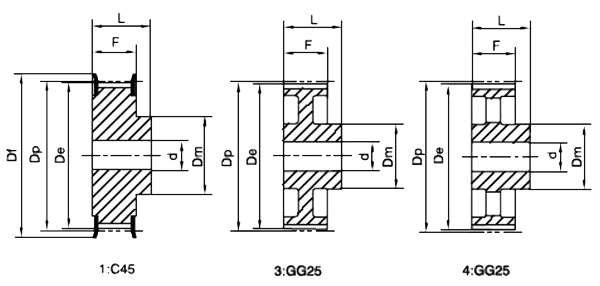

SPC	TYPE	Z	De	Dp	Df	Dm	F	L	d
10L100	1	10	29.56	30.33	37	20	31.8	45	8
11L100	1	11	32.59	33.35	37	24	31.8	45	8
12L100	1	12	35.62	36.37	43	24	31.8	45	8
13L100	1	13	38.65	39.41	43	28	31.8	45	8
14L100	1	14	41.68	42.44	48	28	31.8	45	10
15L100	1	15	44.72	45.48	51	34	31.8	45	10
16L100	1	16	47.75	48.51	54	36	31.8	45	10
17L100	1	17	50.78	51.54	57	36	31.8	45	10
18L100	1	18	53.81	54.59	60	40	31.8	45	10
19L100	1	19	56.84	57.61	63	40	31.8	45	10
20L100	1	20	59.88	60.63	67	40	31.8	45	10
21L100	1	21	62.91	63.68	70	45	31.8	45	10
22L100	1	22	65.94	66.70	75	45	31.8	45	12
23L100	1	23	68.97	69.73	79	55	31.8	45	12
24L100	1	24	72	72.77	79	55	31.8	45	12
25L100	1	25	75.04	75.80	83	58	31.8	45	12
26L100	1	26	78.07	78.84	87	58	31.8	45	12
27L100	1	27	81.1	81.86	91	58	31.8	45	12
28L100	1	28	84.13	84.89	91	58	31.8	45	12
30L100	1	30	90.2	90.96	97	70	31.8	45	12
32L100	1	32	96.26	97.03	102	70	31.8	45	12
33L100	1	33	99.29	100.05	112	70	31.8	45	12
34L100	1	34	102.32	103.08	115	70	31.8	45	12
35L100	1	35	105.35	106.12	115	70	31.8	45	12
36L100	1	36	108.39	109.14	120	70	31.8	45	12
40L100	1	40	120.5	121.29	128	70	31.8	45	12
42L100	1	42	126.57	127.34	135	70	31.8	45	12
44L100	1	44	132.64	133.40	142	70	31.8	45	12
45L100	1	45	135.67	136.44	142	70	31.8	45	12
48L100	1	48	144.77	145.54	150	70	31.8	45	12
50L100	3	50	150.83	151.60	-	70	31.8	45	14
52L100	3	52	156.9	157.66	-	70	31.8	45	14
56L100	3	56	169.02	169.79	-	70	31.8	45	14
57L100	3	57	172.06	172.82	-	70	31.8	45	14
60L100	3	60	181.15	181.92	-	75	31.8	45	14
68L100	4	68	205.41	206.17	-	75	31.8	45	14
72L100	4	72	217.53	218.29	-	75	31.8	45	14
84L100	4	84	253.92	254.69	-	75	31.8	45	14
96L100	4	96	290.3	291.06	-	75	31.8	45	14
